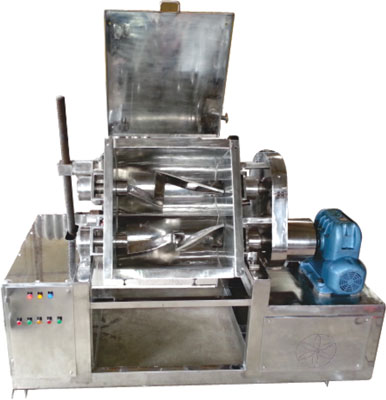

550 litres Sigma Mixer

SPECIFICATION

550 L Sigma mixer is used to mix, knead, crush, disperse, grind and drying high viscosity paste which cannot be processed by the general powder mixers and liquid blenders.

Sigma Mixer is one of the most important equipment for all kinds of chemical products and has the qualities of stirring equally, kneading efficiently and no dead corner.

The materials are rubbed, pushed, folded and pressed among the blade container wall. The materials cycle from one end of the impeller to the other. The two mixing elements (Blades) are tangent and spin at different speeds to complete the kneading process. Tilt the container to discharge the material by manual wheel operated by worm pinion mechanism.

The parts of the container and the blade that contact with the materials are made of stainless steel, to ensure product’s quality.

Sigma Mixer can be used for processing viscous to highly viscous material in various industries

Jacket is provided for application of Heating or Cooling

Vacuum Design :

As per application Sigma Mixer can be design to operate in vacuum with Side glass Light glass.

APPLICATION

Chemical and Pharmaceutical Industry : Silicone resin, Sealant, Silicon rubber, Silica gel, Hot melt adhesive, Butyl rubber, Glass cement, BMC / CMC, Pigment, Plastics, Dyestuff, Ink, Fiber paste, Aluminium silver paste, Paper pulp, carbon material, battery paste. Tooth paste, Clay, Polyethylene, Pitch coating coke, Coal tar pitch etc.

Food Industry: Chocolate, Bubble gum, dough, chewing gum, soft candy, cheese etc.

Discharge Way: Tilting by manual wheel operated by worm pinion mechanism, Screw Motorise Mechanism, Hydraulic Cylinder Power Pack and Bottom valve discharge.

Material of Construction: Container made of Stainless Steel 304 / 316 or Mild steel as per customers’ requests.
