Sparkler Filter
Filter press is used for clear filteration of Pharmaceuticals, Chemicals, Beverages, Food , Varnish ,Resin and other industries.

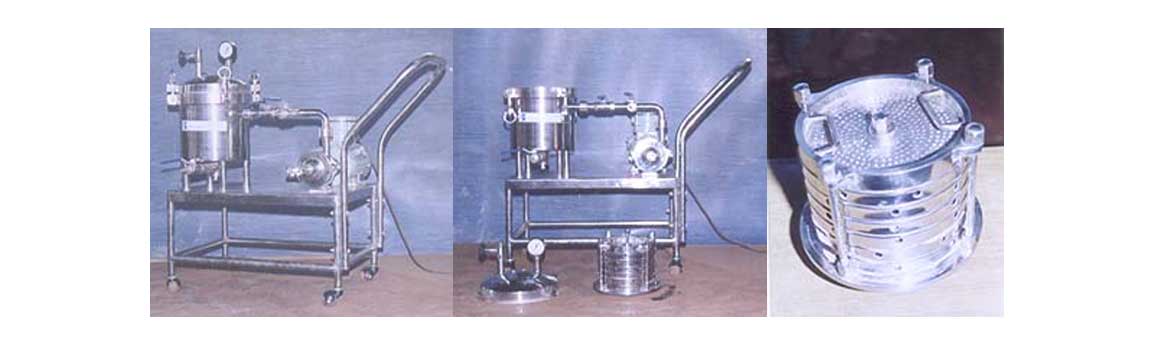

We Manufacture Filters in S.S. 304/ 316/ 316 L quality carbon steel internal with rubber lining. S.S.Engineering Horizontal Plate Filters gives Optimum recovery of Product with Quick change of Cartridge in totally enclosed system ensuring Low operating cost in various sizes viz. 8", 14",18",24" & 33". Filter press are also available with jacket arrangement for hot filteration.
TECHNICAL DATA
Dia of Plates |
No. of Plates |
Filter Area m2 |
Cake Space (Lit) |
Flow Rate Lit/hr |
8" |
6 |
0.18 |
3.6 |
450 |
8" |
8 |
0.24 |
4.8 |
550 |
8" |
12 |
0.36 |
7.2 |
750 |
14" |
8 |
0.75 |
22.5 |
1600 |
14" |
10 |
0.93 |
27.9 |
2000 |
14" |
12 |
1.12 |
33.6 |
2300 |
14" |
16 |
1.5 |
45.0 |
2700 |
18" |
10 |
1.5 |
30.0 |
3000 |
18" |
15 |
2.3 |
46.0 |
4500 |
18" |
23 |
3.5 |
70.0 |
7000 |
18" |
30 |
4.5 |
90.0 |
8500 |
18" |
36 |
5.4 |
108.0 |
9500 |
FILTER OPERATION :
The liquid to be filtered is pumped into the FILTER TANK by Gear Pump. A CARTRIDGE PLATE ASSEMBLY consists of several filter plates arranged with supporting SCREENS, FILTER MEDIA and interlocking CUPS, is fitted in the filter tank. The liquid in the tank finds its way to the top of the plates through the circular openings on the side of the plates. The Filter media arrests suspensions and allows the filtrate to pass through them and the screens and to run down the central vertical channel formed by the interlocking cups. It then goes out through the outlet pipe. The filterate is collected from the outlet pipe.
