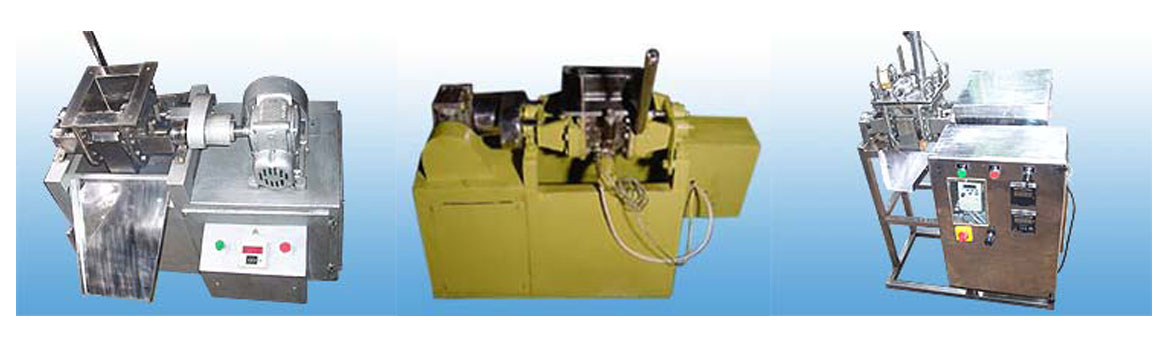

Sigma Mixer (Lab Model)
S. S. ENGINEERING introuduces the Lab model SIGMA MIXER for trouble free long term operation for various application like mixing, kneading, grinding, dispersion, drying etc.
CONSTRUCTION
SIGMA MIXER consist of "W" shaped container made of Stainless Steel 304 or 316 with jacket of Carbon Steel covering two side for heating or cooling application & dust free cover to get Vacuum if desired or normal cover. The mixing elements (Blades) are of Sigma type Steel casted and duly finished two in number which contra rotate inward fitted at close or specified clearance with the container to give thorough and uniform mixing. There is a Gland pusher of Gun Metal Bush which ensure minimal friction and extend the life of mixing elements (Blades) Shaft.
DRIVE
The Drive Consists of Motor of type TEFC Or TEFC Flameproof of Specified
HP.1 440 RPM, Reduction Gear Box Of Reputed Make having suitable size and ratio, Spur Gears, are also provided of adequate size and having machine cut teeth, between the front and rear blade complete with guard suitable for grease lubrication.
STAND
The complete Mixer is Mounted on Steel Fabricated stand of suitable strength to withstand the vibration and give noise free performance.
FEATURES
SIGMA MIXER as the name suggests contains mixing element (Blades) of Sigma type two in number which contrarotates inward to achieve end to end circulation & thorough & uniform mixing at close or specified clearance with the container. The mixed product can be easily discharged by tilting the container by hand lever manually either by system of gears manually operated or motorised.
STANDARD MIXER - DESIGN FEATURES
