Ball Mill

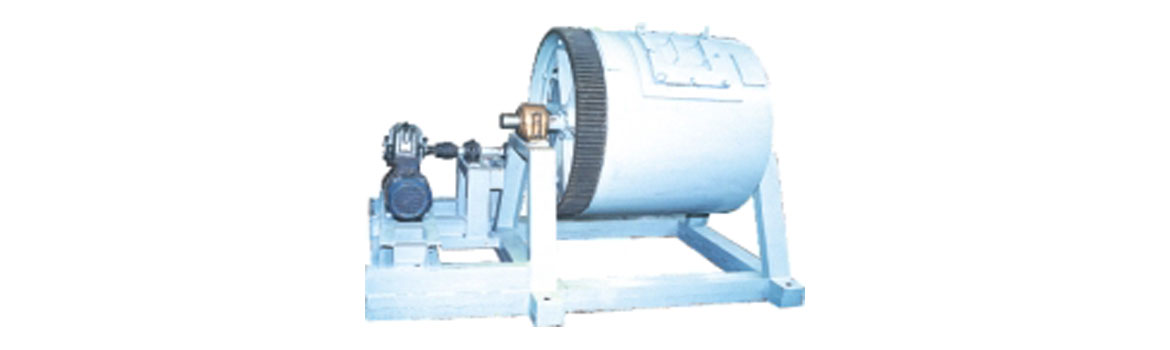

Ball Mill consist of Cylindrical shell rotating on a horizontal axis mounted on a sturdy Mild Steel Frame. Both the end plates of the mill are strongly designed to withstand the rotational load of the mill charged with the grinding medium and the material to be processed. Openings are provided through which the grinding medium and the material to be processed is loaded and discharged.

Drive
The Mill is driven by motor coupled to the Reduction Gear box. with Chain and Sprocket arrangement or V Belt.

S.S.Engineering Ball Mills are fabricated from Mild Steel, Rubber lined and Stainless Steel.

Mills Size	Container Capacity	Motor
20" x 20"	100 ltrs	2HP
2' x 2'	175 ltrs	3HP
2'-6" x 2'-6"	325 ltrs	5HP
2'-6" x 3'-6"	440 ltrs	7.5HP
3' x 3'	590 ltrs	7.5HP
3'-6" x 3'-6"	900 ltrs	10 HP
4' x 4'	1400 ltrs	15HP
4'-6" x 4'-6"	1600 ltrs	20HP
