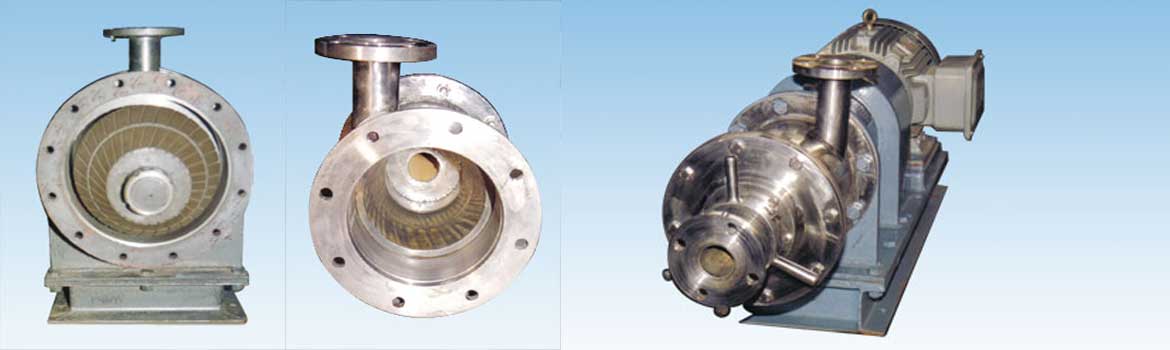

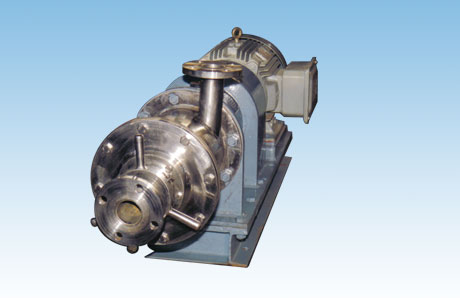

Colloid Mill

S. S. ENGINEERING COLLOID MILL IS renowned manufacturer of Rotor Stator. Mill is providing innovative Solutions for various industries viz Food Pastes, Emulsions, Coatings, Ointments, Creams, Grease etc. The mill has application for Homogenising, Emulsifying, Dispersing, Mixing & Grinding. The Colloid Mill is a through flow machine using the kinematic high frequency technology.

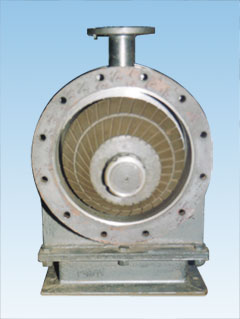

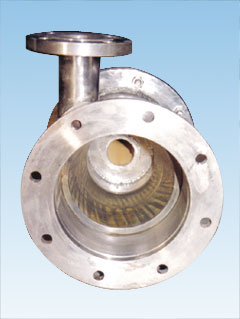

The product is fed to the centre of a Rotor -Stator system by specially designed feed Hopper or by Pump Device. The product is accelerated outwards by the Rotor's centrifugal action. The mixing and grinding effect is achieved by friction, shearing stress and impact stress in the gap between Rotor and Stator.

Salient Features
• The Colloid Mills contact parts are made or S.S.304 or S.S.316.
• Flexible Coupling provided between motor Shaft & Rotor shaft for easy maintenance
• Motor protection cover is provided
• Specially Designed Hand lever manually provided to facilitate fine adjustment of clearances between rotor & stator. even during operation

Optional
•Water Jacket can be made as per the need for cooling or heating purpose
• S.S.316 in place of S.S.304 contact parts
•GMP model in place of Standard model

MODEL SS 25C SS 50C SS 500C SS 1000C Hopper 10 ltrs 20 ltrs 50 ltrs 100 ltrs Capacity / Shift 50-200 50-350 300-50 500-1500 Motor HP 3 5 10 20 R.P.M. 2800 2800 2800 2800 Particle Size Reduction 50 to 10 Microns 50 to 10 Microns 50 to 10 Microns 50 to 10 Microns
