Ex Stocks

You Are In:Home /Gallery /Ex Stocks

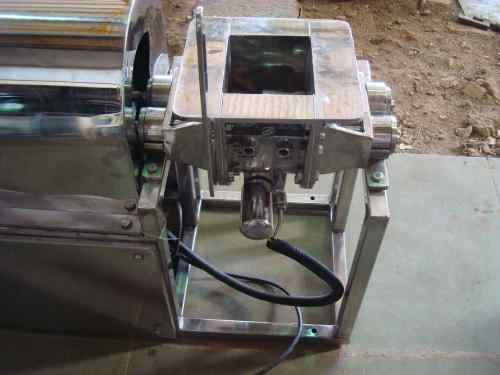

Lab Sigma Mixer

Image Particulars Values / Information
image Total Capacity 2 Litres
Shell S.S. 304
Shell Thickness 5mm
Container Size 130mm x. 130 mm x 130mm
Top lid thickness 5mm
Jacket S.S.304
Jacket (In two parts one for cooling And other for heating) Provided with 1 KW heater with Panel boar
Top S.S.304 LID for dust preventing
Blade S.S.304 Sigma Blade Z Type
Stuffing Box Teflon Rope
Bearing Housing S.S.304 with Bearing (Ball bearing)
Gland Pusher With Gun metal Bush
Tilting Tilting arrangement will be provided Manually
Drive Drive is coupled to the Gear Box driven by Electric Motor
Motor Motor 1440 RPM make Navjyot 1 H.P. 220 Volt ,50 Hz IP- 44 CL- B,horizontal foot mounting type TEFC Pully Size 3 “ B, Section -1 Groove S No : 8415
Gear Box with coupling Horizontal type 2” centre make Anand Worm Reducer Ratio : 30 : 1 , Pully Size 4 “ B, Section -1 Groove
Panel board Panel board consists of o off push button for Motor Temperature Indicator. Temperature cut off & on desired temperature
Overall Size SIGMA MIXER 750 MM L 350 MM W + Pannel Board 280 MM Total Width 630 MM 805 MM H + Handle Height 256 MM Total Height 1070 MM

Centrifuge

Image Particulars Values / Information
image 7.93 7.93
1400-1420 1400-1450
72 72
Model FTD 36”
Size 36"
Type Four Point Suspension Manual Top Discharge
Inertia Plate Heavy Inertia plate
Anti vibration Mounts 4 Point mounting
Basket Dia 900MM
Basket Depth 425MM
Filtration Area 1.2
Rated charge in Basket 140 Ltrs
Basket Revolution RPM 1000
Material of Construction S.S.304
DRIVE
Motor 7.5H.P. T.E.F.C Crompton make
Transmission Mechanical Clutch pulley
Full Body Opening For easy cleaning. The outer body of the centrifuge hinges open using Pneumatic or Hydraulic.

Centrifuge

Image Particulars Values / Information
image Model SS-36
Size  36 "
Type Manual Top Discharge
Basket Dia 900mm
Basket Depth  425mm
Filteration Area  1.2 M2
Rated  Charge in Basket 140 Ltrs.
Material of Construction S.S. 304
Motor   7.5 H.P.  T.E.F.CMotor
Speed 1440 RPM
Basket Speed 1000 RPM
The Centrifuge  is a sturdy three point suspension under driven centrifuge.

Centrifuge

Image Particulars Values / Information
image Model SS-24
Size  24 "
Type Manual Top Discharge
Basket Dia 600mm
Basket Depth  300mm
Filteration Area  0.56 M2
Rated  Charge in Basket 140 Ltrs.
Material of Construction S.S. 304
Motor   7.5 H.P.  T.E.F.CMotor
Speed 1440 RPM
Basket Speed 1000 RPM
The Centrifuge  is a sturdy three point suspension under driven centrifuge.

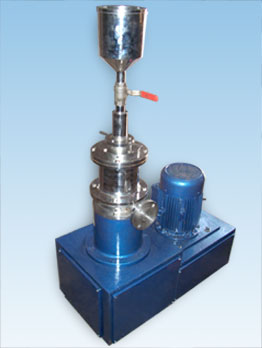

Colloid Mill

Image Particulars Values / Information
image Capacity 50-350Ltrs P/Hrs
Type of Mill vartical Type
Outer Body S.S. 316
Rotor S.S.316
Starter S.S.316
Starte Adjustable arrangement
Rotor Size 4" x 5"
Motor 7.5 H.P. Make Cromption
1440 R.P.M
Motor Make Crompton
Complete Coloid Mill Mounted on M.S. Stand

Sigma Mixer Lab Model

Image Particulars Values / Information
image Model SSL 05
Capacity 05 Ltrs
Material of Construction S.S. 316
Motor 2 H.P
Motor Make Crompton

Sigma Mixer

Image Particulars Values / Information
image Total Capacity 50 Litres.
Material of Construction Shell S.S. 304 Shell Thickness 5mm
Top End 5mm thick
Jacket M.S. Thickness 5mm
Size 15" x 15" x15" height.
Tilting Tilting Arrangement will be Provided
Top Cover S.S.304 quality with Handle.
Blade Sigma Blade Z type. Material of Construction S.S. 304 quality.
Stuffing Box Teflon Rope
Bearing Housing With Bearing . Ball Bearing
Gland Pusher With Gunmetal Bush.

Sigma Mixer Lab Model

Image Particulars Values / Information
image Total Capacity 100 Litres.
Material of Construction Shell S.S. 304 Shell Thickness 5mm
Top End 5mm thick
Jacket M.S. Thickness 5mm
Size 22" x 20" x21" height.
Tilting Tilting Arrangement will be Provided
Top Cover S.S.304 quality with Handle.
Blade Sigma Blade Z type. Material of Construction S.S. 304 quality.
Stuffing Box Teflon Rope
Bearing Housing With Bearing . Ball Bearing
Gland Pusher With Gunmetal Bush.
