Contra Mixer

Contra Mixer as the name suggest works on the principle of Contra rotation of Blades for simultaneous beating and scraping operation The mixer is highly versatile and mostly used for manufacturing toothpaste, creams, cosmetics and viscous products.

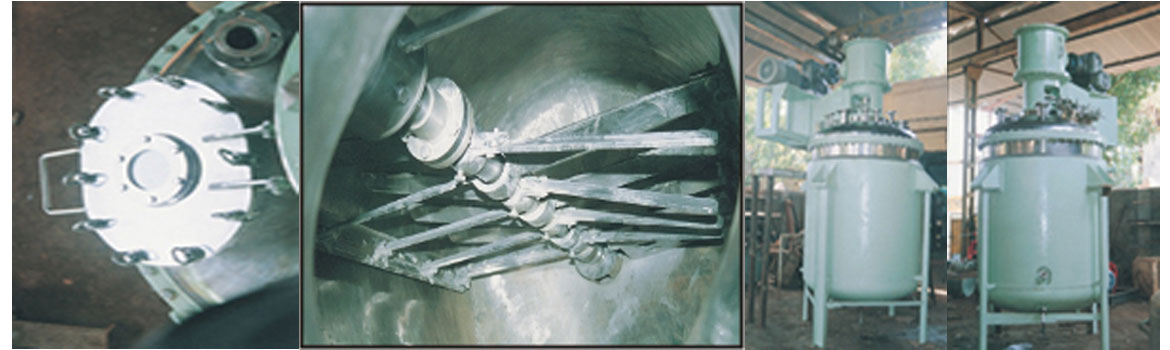

The Mixing Assembly consists of series of paddle type blades of appropriate shape to move the material back towards the centre of the container. The paddle type blades are provided on the central shaft which runs through a hollow shaft on which other sets of blades are welded. Both the sets of blades intermeshes with each other and rotates in clockwise and anti-clockwise direction respectively and one sets also scraps the container wall for thorough and uniform mixing of the material.

The mixer is so designed to withstand high vaccum applied during the process for optimum mixing. Contra Mixer is provided with a jacket for cooling or heating as per the application.

We manufacture Contra Mixer with Capacity ranging from 5 litres to 5,000 litres in Material of construction SS 304 or 316.
