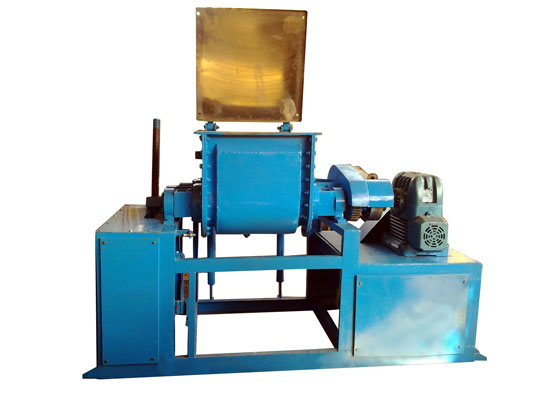

200 litres Sigma Mixer
SPECIFICATION
200 L Sigma mixer is used to mix, knead, crush, disperse, grind and drying high viscosity paste which cannot be processed by the general powder mixers and liquid blenders.
Sigma Mixer is one of the most important equipment for all kinds of chemical products and has the qualities of stirring equally, kneading efficiently and no dead corner.
The materials are rubbed, pushed, folded and pressed among the blade container wall. The materials cycle from one end of the impeller to the other. The two mixing elements (Blades) are tangent and spin at different speeds to complete the kneading process. Tilt the container to discharge the material by manual wheel operated by worm pinion mechanism.
The parts of the container and the blade that contact with the materials are made of stainless steel, to ensure product’s quality.
Sigma Mixer can be used for processing viscous to highly viscous material in various industries
Jacket is provided for application of Heating or Cooling
Vacuum Design :
As per application Sigma Mixer can be design to operate in vacuum with Side glass Light glass.
APPLICATION
Chemical and Pharmaceutical Industry : Silicone resin, Sealant, Silicon rubber, Silica gel, Hot melt adhesive, Butyl rubber, Glass cement, BMC / CMC, Pigment, Plastics, Dyestuff, Ink, Fiber paste, Aluminium silver paste, Paper pulp, carbon material, battery paste. Tooth paste, Clay, Polyethylene, Pitch coating coke, Coal tar pitch etc.
Food Industry: Chocolate, Bubble gum, dough, chewing gum, soft candy, cheese etc.
Discharge Way: Tilting by manual wheel operated by worm pinion mechanism, Screw Motorise Mechanism, Hydraulic Cylinder Power Pack and Bottom valve discharge.
Material of Construction: Container made of Stainless Steel 304 / 316 or Mild steel as per customers’ requests.
|
Sigma Mixer Capacity, Size of container required Motor and overall dimension |
|||||||||||||
|
Model |
Total |
Working |
Container Size |
|
REQUIRED MOTOR |
|
|
|
Mixer Overall dimension |
Open |
|||
|
|
Volume |
Capacity |
Length(A) |
Width(B) |
Height( C ) |
H.P. |
K.W |
AMPS |
RPM |
Length (D) |
Width (E) |
Height (F) |
Lid Height (G) |
|
SS-16 |
200 LTR |
160 LTR |
650 mm |
600 mm |
600 mm |
15 H.P. |
11 |
20.8 |
1450 |
2230mm |
1100mm |
1570mm |
900mm |
|
26" |
24" |
24" |
20 H.P. |
15 |
28 |
1455 |
87" |
43" |
61" |
35" |
|||
|

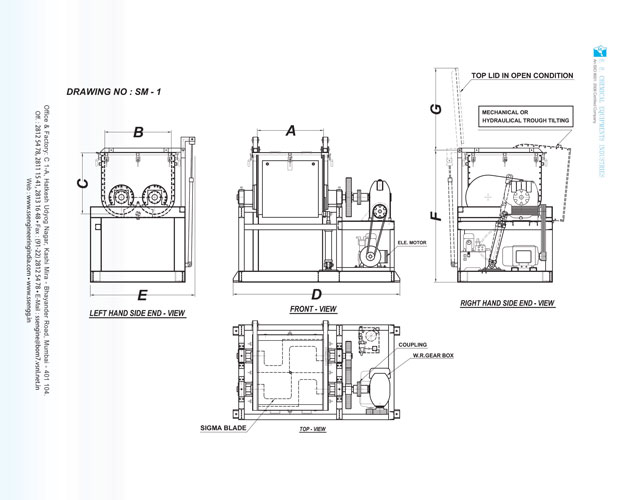

For Container Size and Overall dimension please refer Drawing No. SM-1 |
|||||||||||||
|
Container Size : -Container Length (A), Container Width (B), Container Height (C),Mixer Overall Dimension :- Length (D), Width (E), Height (F), Lid Height (G) |
|||||||||||||
|
THE FOLLOWING CHART DEPICTS STANDARD MODELS AVAILABLE. BECAUSE OF THE CONTINUING EFFORT TO IMPROVE OUR PRODCUTCS, SIZE AND DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. |
|||||||||||||
