Zero Holdup Sparkler Filter

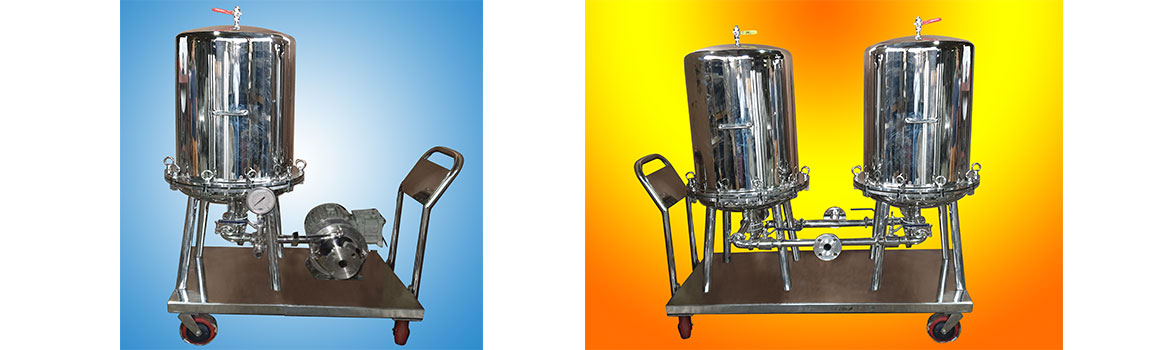

Zero Hold Up Filter Press

S.S Engineering Zero Hold Up Filter Press machines are high in performance, low in maintenance, dimensionally accurate and offer excellent quality durability and use for crystal clear filtration of pharmaceuticals, chemicals, resins, beverages, distillery, oil, ink and other industry.

There are various measures available in size & number of plates to give different filtration area and cake holding capacities to meet your process requirements.

The Cartridge assembly consists of plates, perforated screens, spacers and fitter media. Interlocking spacers internally form single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet. The liquids spreads out equally on each plate fitted with filter media. Solids remain on filter media and clear. Filtrate flows through precisely made holes on sides of plates and collects in the shell, which then come out through the outlet. In this process, solids are evenly distributed on each plate. The cake is then cleaned from the filter material and used again for filtration process.

TECHNICAL SPECIFICATION

Model	Diameter of Plates	No. of Plates	Filter Area M2	Cake Space (Lit)	Flow Rate Lit/hr	HP	Pump Size (inches)
SS 8.6	8”	6	0.195	4.50	400	1hp	½”
SS 8.8	8”	8	0.260	5.75	500	1hp	½”
SS 8.10	8”	10	0.325	7.00	800	1hP	½”
SS 14.8	14”	8	0.750	27.00	1500	2hp	1”
SS 14.10	14”	10	0.937	35.00	1800	2hp	1”
SS 14.15	14”	15	1.406	40.00	2000	2hp	1”
SS 18.8	18”	8	1.265	50.00	2500	3hp	2”
SS 18.12	18”	12	1.897	78.00	3700	3hp	2”
SS 18.15	18”	15	2.300	44.00	4500	3hp	2”
SS 18.18	18”	18	2.750	75.00	6000	3hP	2”
SS 18.24	18”	24	3.600	65.00	6500	3hp	2”
SS 24.15	24”	15	4.192	135	7000	5hp	2 ½”
SS 24.18	24”	18	5.030	160	7500	5hp	2 ½”
SS 33.14	33”	14	7.820	220	10000	5hP	2 ½”
SS 33.18	33”	18	10.050	260	11000	5hp	2 ½”
